Public Number Preprocessing

Public number preprocessing: This procedure is applicable to all the call types. It is used to normalize numbers before they switch to the Core Procedure of Number Analysis. Figure 1 shows the flowchart of number analysis in public number preprocessing.

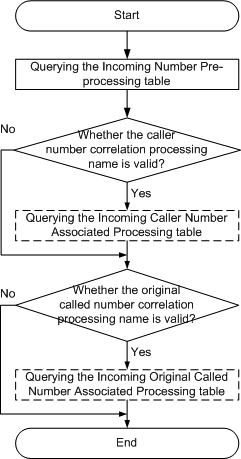

Figure 1 Flowchart



NOTE:
In the preceding figure, the mandatory tables for querying are highlighted by solid-line frames and the optional tables are highlighted by dotted-line frames.
Detail:

Table Description

Table Name Command Input Parameter Output Parameter Function Description
Incoming Number Pre-processing table ADD INNUMPREPRO
  • Call source name
  • Call originator
  • Call prefix
  • Called number address nature
  • Caller number change name, called number change name, and original called number change name
  • Caller number correlation processing name
  • Original called number correlation processing name
  • Number receiving minimum length
  • Number receiving delay interval(0.1s)
 Based on the call source name and call prefix, the MSOFTX3000 performs calling number change, called number change, original number change, and number receiving delay processing.
Incoming Caller Number Associated Processing table ADD INCLRIDX
  • Caller number correlation processing name
  • Calling number
  • Caller category
  • Caller number address nature
  • Caller number change name
  • Called number change name
  • Original called number change name
  • Number receiving delay interval(0.1s)
 Based on the caller number and the related attributes, the MSOFTX3000 performs the called and original called number change, and defines new DN set.
Incoming Original Called Number Associated Processing table ADD INORICLDIDX
  • Original called number correlation processing name
  • Original called number
  • Original called number address nature
  • Caller number change name and called number change name
  • Original called number change name
  • New DN set
 Based on the original called number and the related attributes, the MSOFTX3000 performs the calling, called, and original called number change, and defines new DN set.
